Fantom DH35
aluminium. MTB.Bombproof and lightning-fast wheels.
The Fantom DH35 is for enduro and DH riders that need a hardcore wheel for hardcore riding. They are designed to balance strength and weight with a 35mm external/30mm internal rim width and 32 spoke build.

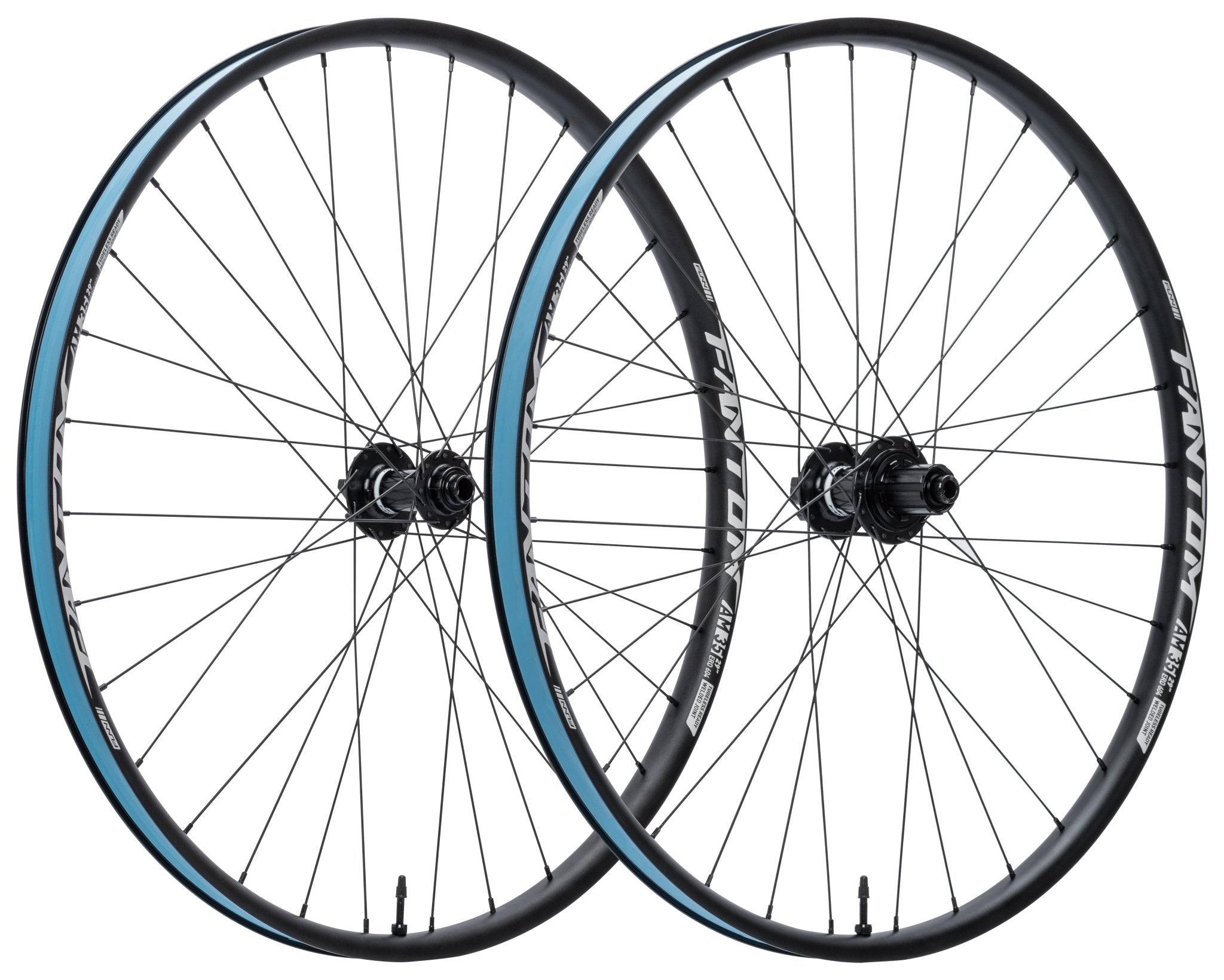

Funn Fantom wheelsets are the complete package, pairing Funn Fantom hubs and rims to create a lightweight, tough and fast wheel for everything from downhill to trail to gravel. Our wheels are available in 27.5″ and 29″ and Boost/Non-Boost.

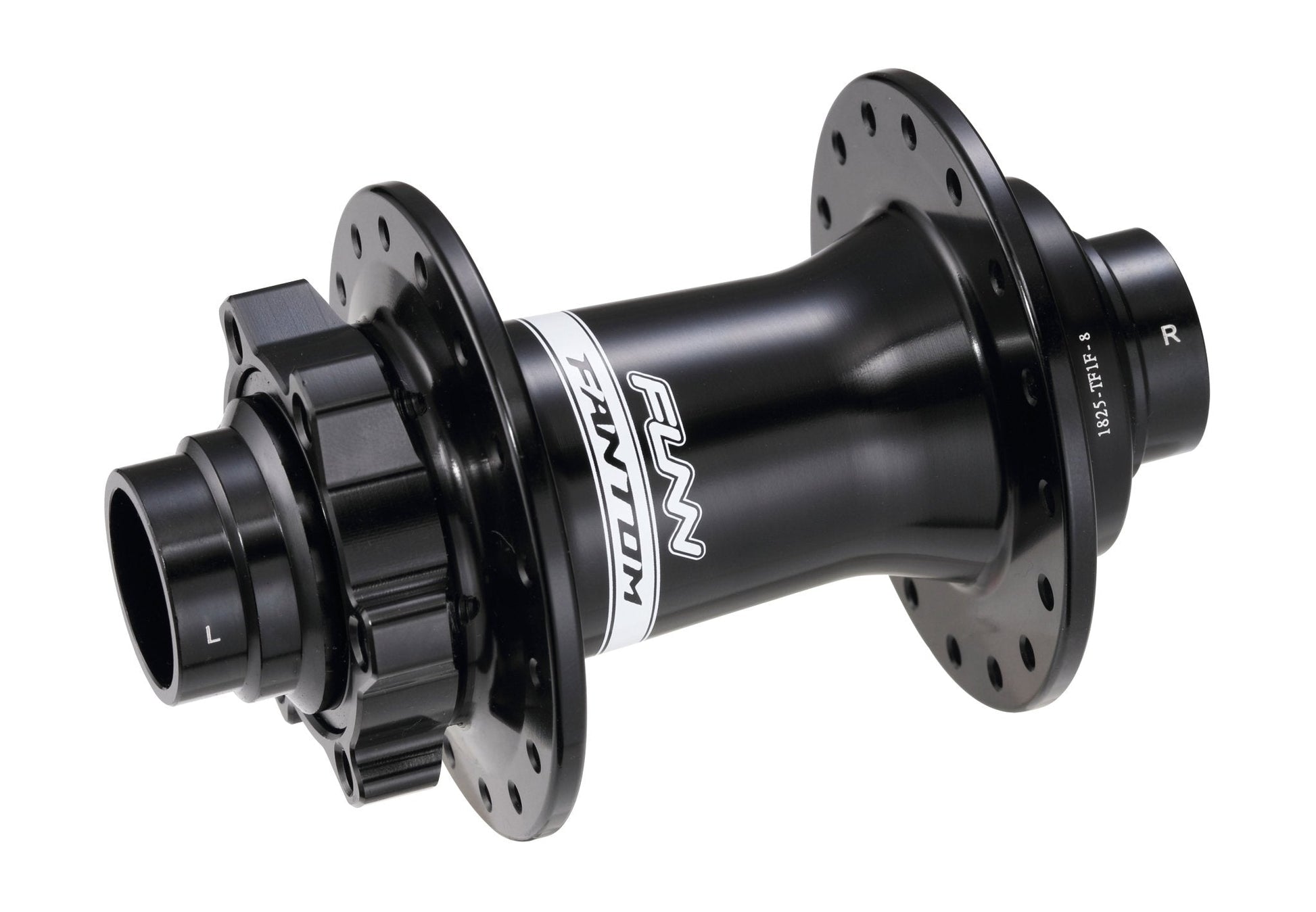

The Fantom hub is precision-engineered from AL6061 with a quick-engagement 6 pawl and 102T design.
The Fantom rim is a bombproof and lightweight design, made from welded AL6066 with a sandblasted black anodised finish.
Fantom wheels are tubeless-ready and come supplied with tubeless rim tape and valves.
Technical
Intended use | Downhill |
Tubeless-ready | Supplied with tubeless tape and 2 x valves |
Available sizes | 27.5″ | 29″ |
Weight | 2100g | 2170g |
Spoke count | Front 32H Rear 32H |
Front 32H Rear 32H |
Funn Fantom Rim
Valve standards | Presta |
Axle standard front | 20x110mm |
Axle standard rear | 12x157mm |
Rim width external | 35mm |
Rim width internal | 30mm |
Rim depth | 23mm |
Rim eyelet | No |
Rim material | Welded 6066 Alloy |
Finish | Sandblasted Anodized Black |
ETRTO | 584×40 | 622×40 |
ERD | 557mm | 594mm |

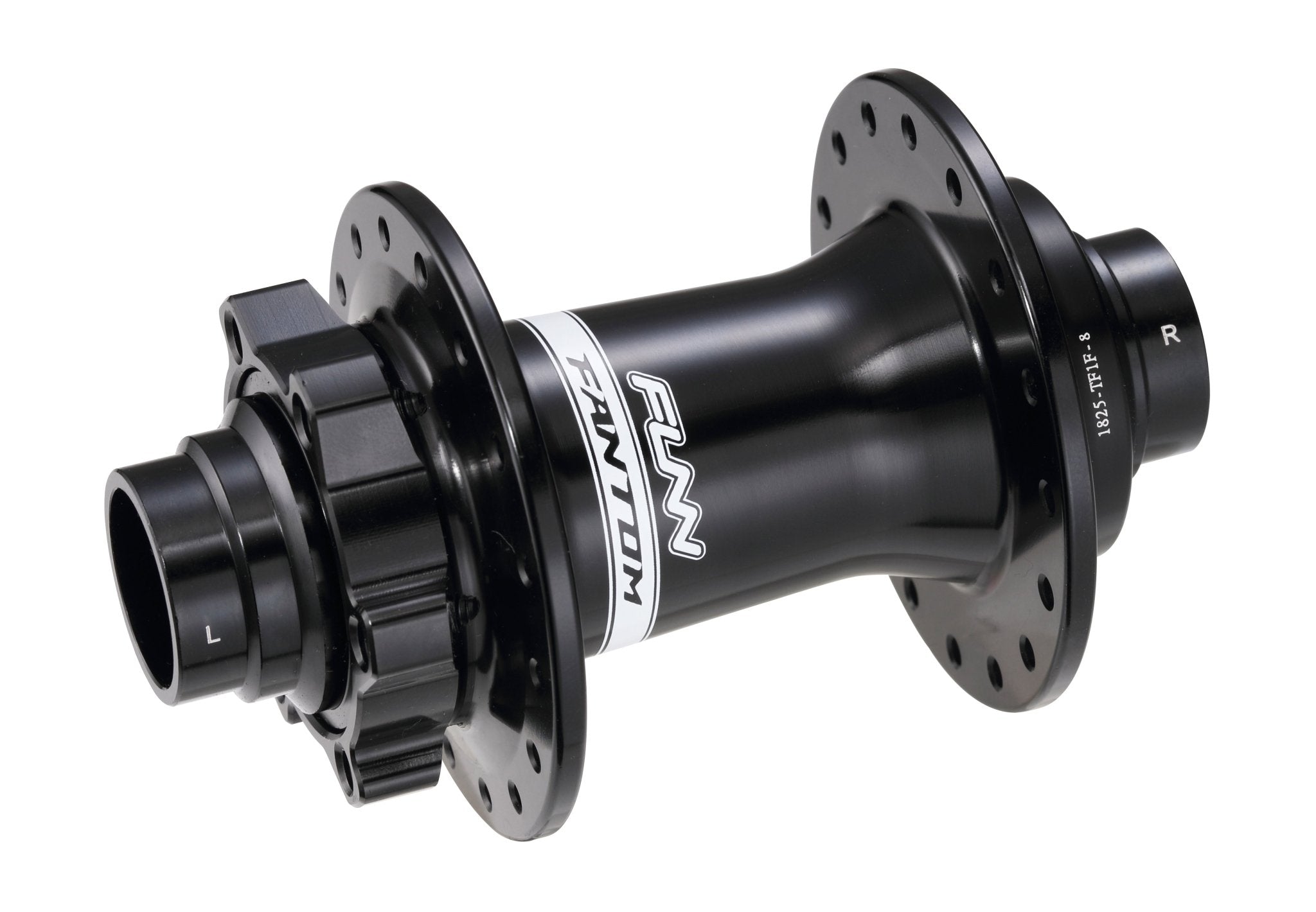

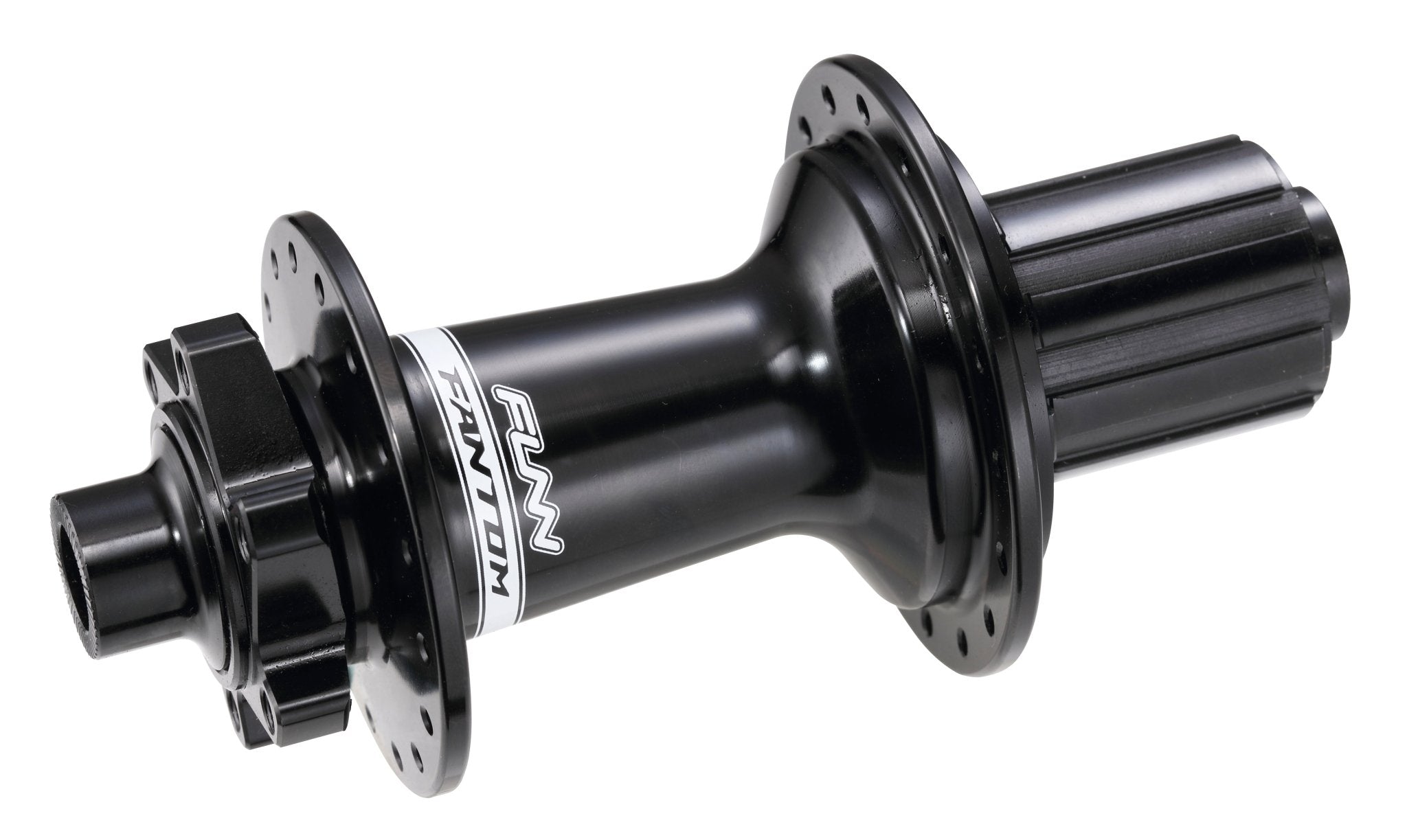

Funn Fantom Hub
Engagement | Fantom 102T quick engagement |
Cassette body | Shimano HG / SRAM XD / Shimano Micro Spline |
Hub body | 6061 Alloy |
Spokes
Butting | Double-butted |
Spoke count | 32h each wheel |
Nipple | Brass |
