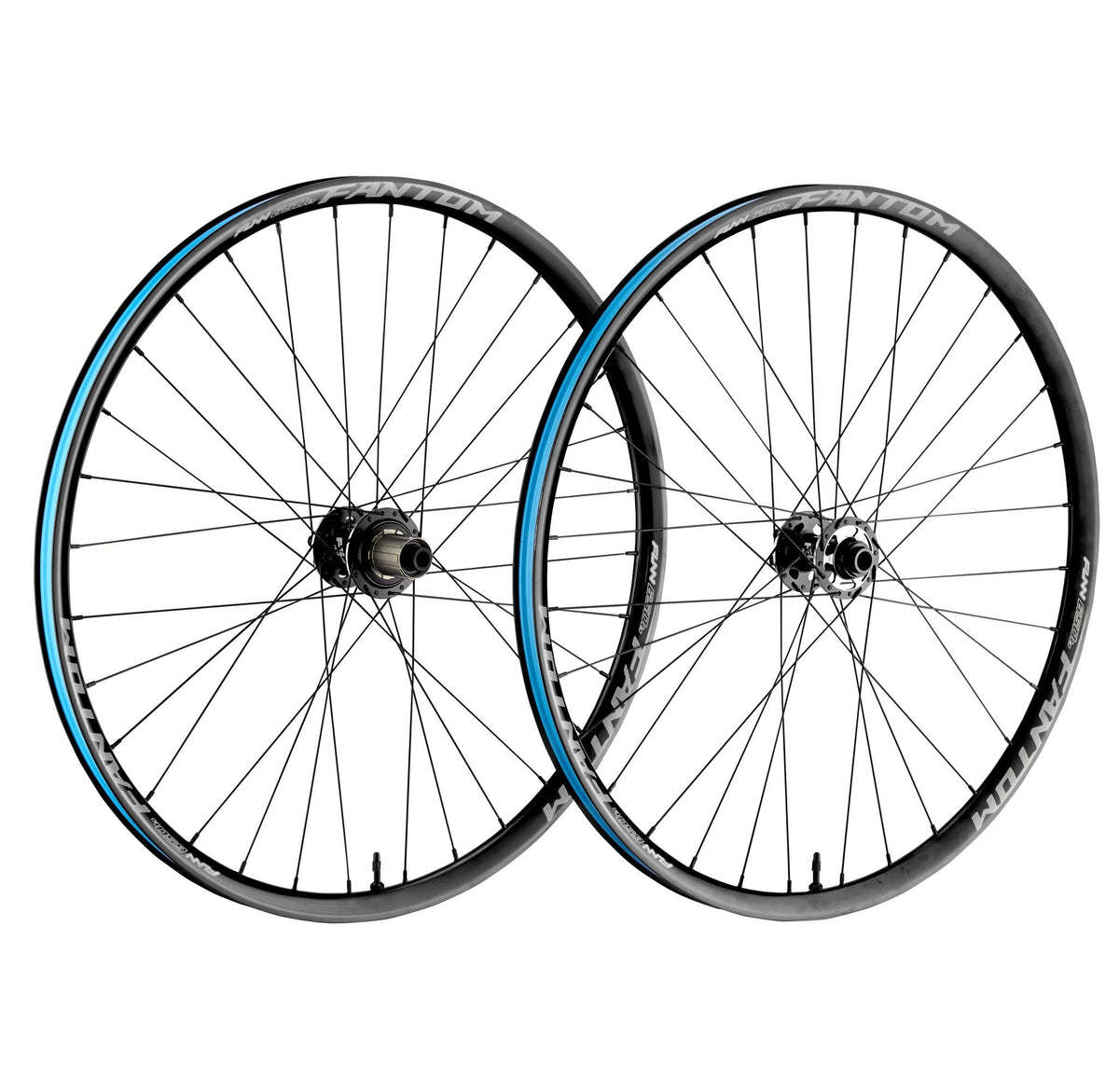

Fantom AM40

aluminium. MTB.

Bombproof and lightning-fast wheels.

The Fantom AM40 is for the trail and enduro riders. Designed to be lightweight and fast-rolling with a 35mm external/30mm internal width for the perfect balance of speed and control.

Funn Fantom wheelsets are the complete package, pairing Funn Fantom hubs and rims to create a lightweight, tough and fast wheel for everything from downhill to trail to gravel. Our wheels are available in 27.5″ and 29″ and Boost/Non-Boost.

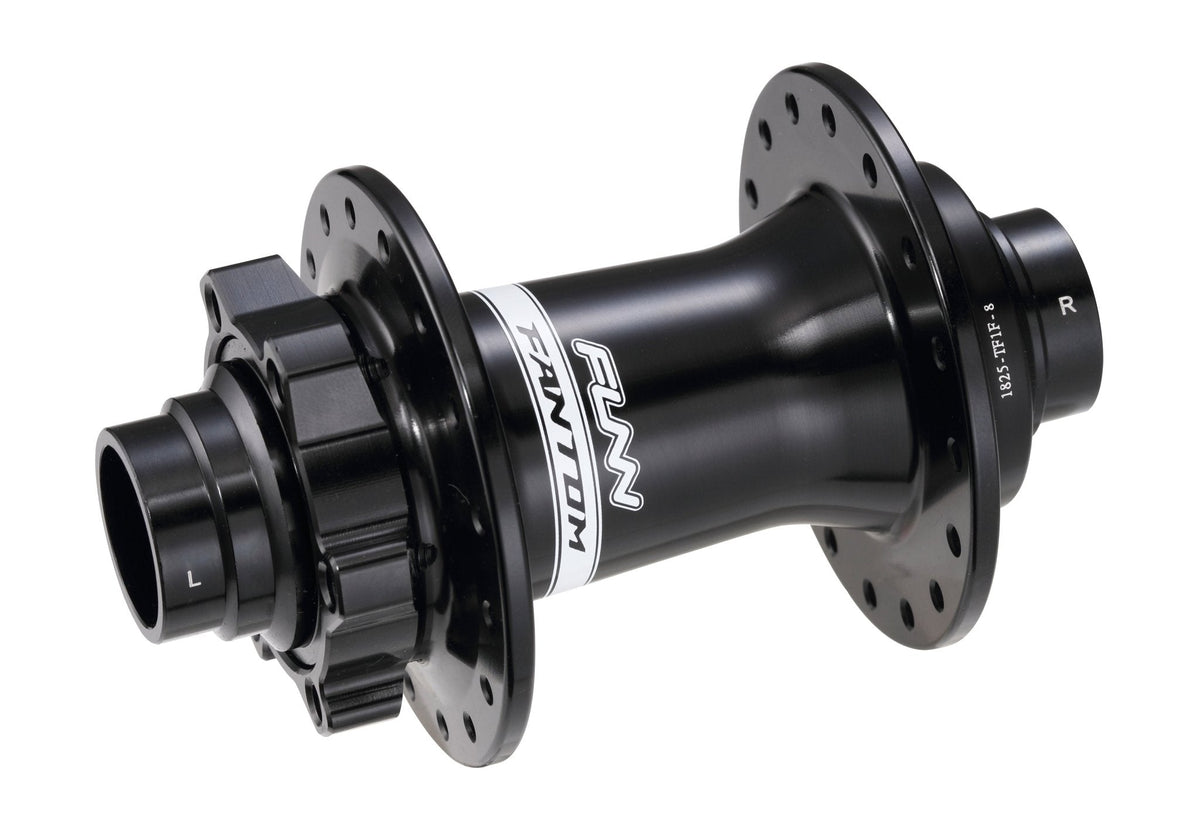

The Fantom hub is precision-engineered from AL6061 with a quick-engagement 6 pawl and 102T design.

The Fantom rim is a bombproof and lightweight design, made from welded AL6066 with a sandblasted black anodised finish.

Fantom wheels are tubeless-ready and come supplied with tubeless rim tape and valves.

Technical

Intended use Trail/Enduro
Tubeless-ready Supplied with tubeless tape and 2 x valves
Available sizes 27.5″ 29″
Weight 2045g (Non-boost)
2075g (Boost)
2115g (Non-boost)
2145g (Boost)
Spoke count Front 32H
Rear 32H
Front 32H
Rear 32H

Funn Fantom Rim

Valve standards Presta
Axle standard front 15x100mm  / 15x110mm
Axle standard rear 12x142mm / 12x148mm

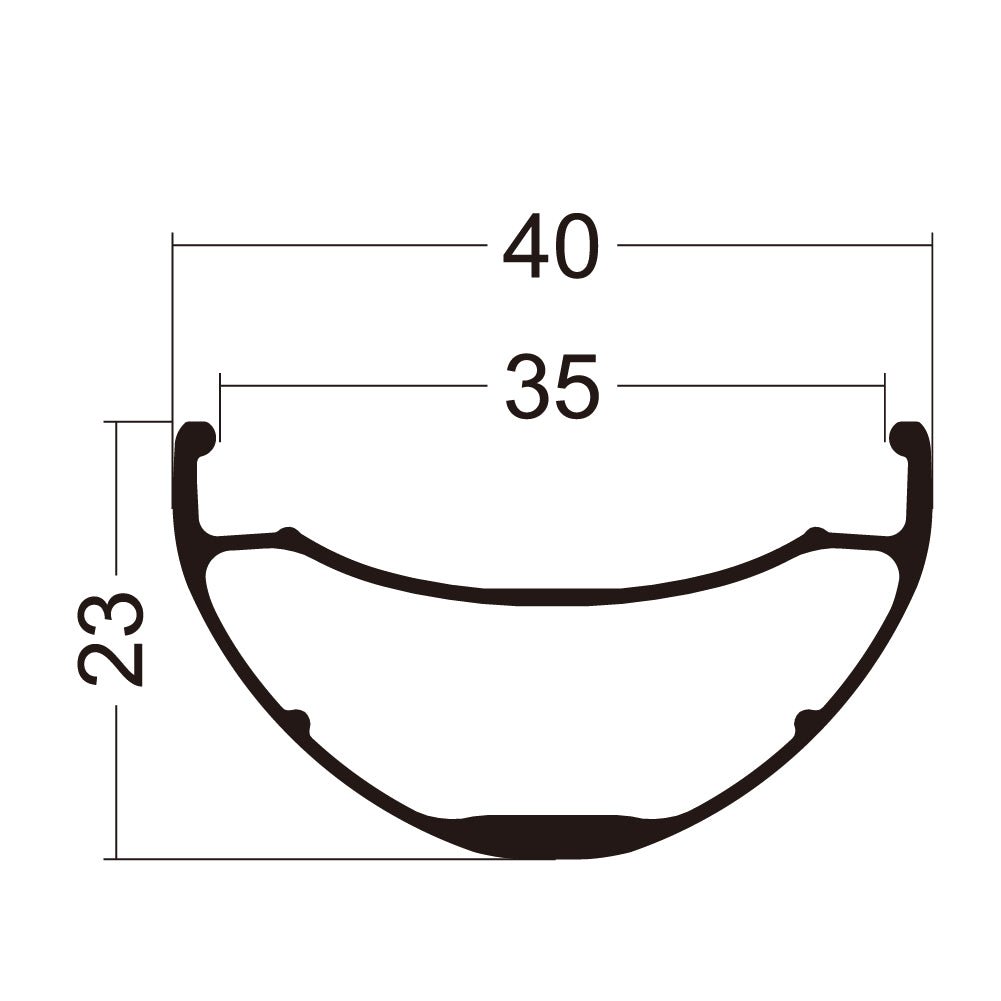

Rim width external 40mm
Rim width internal 35mm
Rim depth 23mm
Rim eyelet No
Rim material Welded 6066 Alloy
Finish Sandblasted Anodized Black
ETRTO 584×40 622×40
ERD 554.5mm 592mm

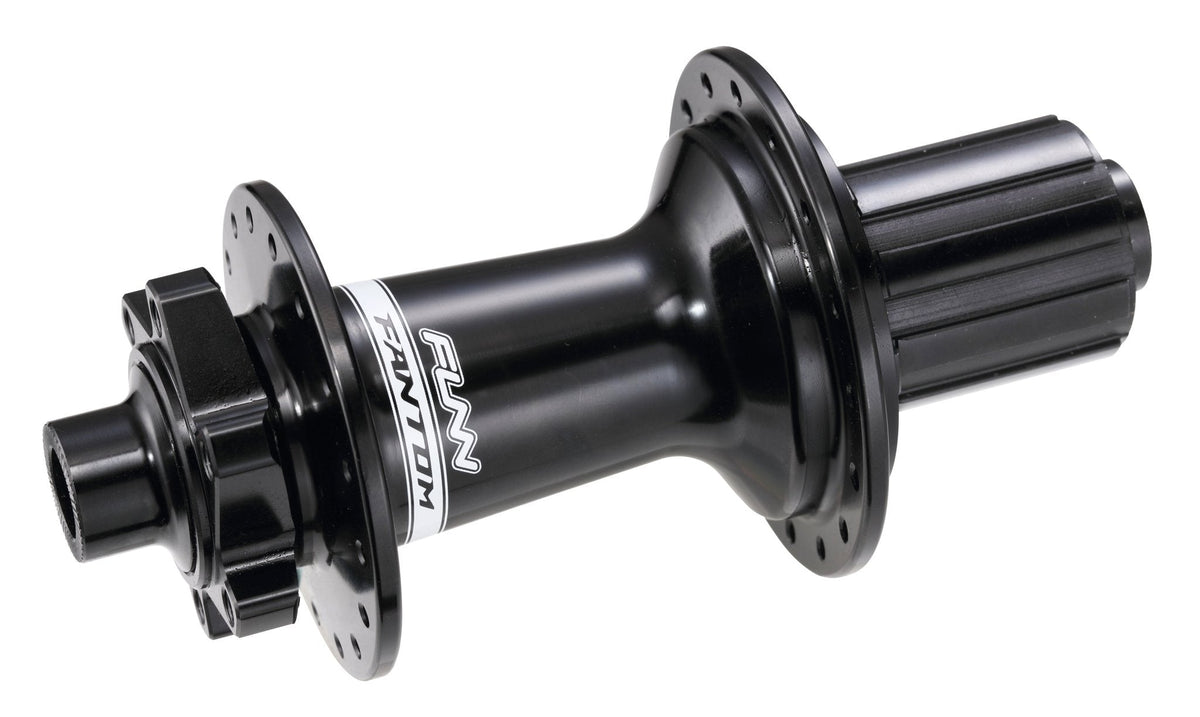

Funn Fantom Hub

Engagement Fantom 102T quick engagement
Cassette body Shimano HG / SRAM XD / Shimano Micro Spline
Hub body 6061 Alloy
Compatibility 100mm front/142mm rear hubs can be converted to QR standard.
Cassette body is convertible between Shimano and SRAM standards.

Spokes

Butting Double-butted
Spoke count 32h each wheel
Nipple Brass
5/5
IMBikemag
“For the price, these wheels are a great purchase; they do everything you’d want from a set of wheels at a quality level including a rapid engaging hub, trail riding strength and properly tubeless ready. Get them on, get them tubeless and have some Funn (yeah, I went there).”
