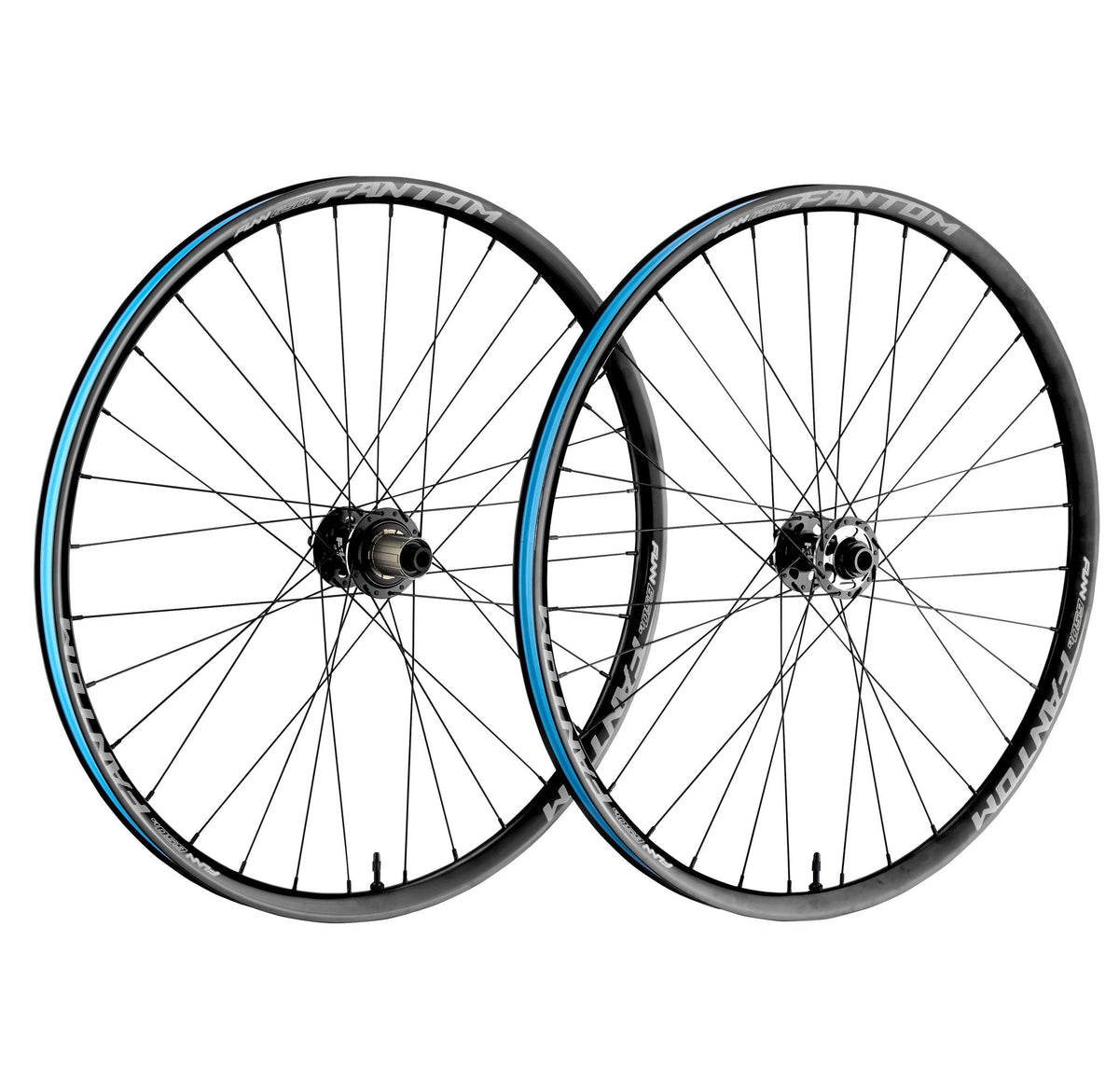

Fantom AM30

aluminium. MTB.

Bombproof and lightning-fast wheels.

The Fantom AM30 is for the trail and XC riders. Designed to be lightweight and fast-rolling with a 30mm external/25mm internal width for the perfect balance of speed and control.

Funn Fantom wheelsets are the complete package, pairing Funn Fantom hubs and rims to create a lightweight, tough and fast wheel for everything from downhill to trail to gravel. Our wheels are available in 27.5″ and 29″ and Boost/Non-Boost.

The Fantom hub is precision-engineered from AL6061 with a quick-engagement 6 pawl and 102T design.

The Fantom rim is a bombproof and lightweight design, made from welded AL6066 with a sandblasted black anodised finish.

Fantom wheels are tubeless-ready and come supplied with tubeless rim tape and valves.


Intended use Gravel / Trail / XC
Tubeless-ready Supplied with tubeless tape and 2 x valves
Available sizes 27.5″ 29″
Weight 1805g (Non-boost)
1835g (Boost)
1875g (Non-boost)
1905g (Boost)
Spoke count Front 32H
Rear 32H
Front 32H
Rear 32H

Funn Fantom Rim

Valve standards Presta
Axle standard front 15x110mm
Axle standard rear 12x148mm

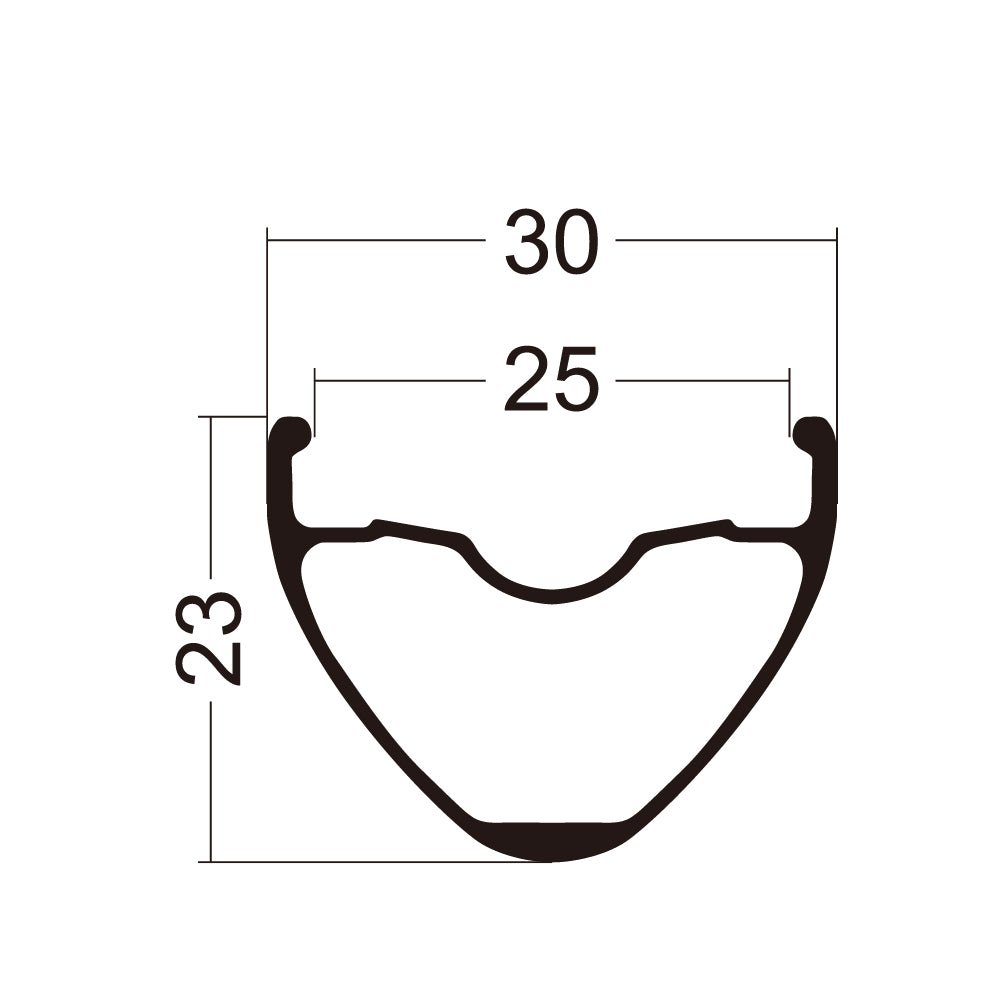

Rim width external 30mm
Rim width internal 25mm
Rim depth 23mm
Rim eyelet No
Rim material Welded 6066 Alloy
Finish Sandblasted Anodized Black
ETRTO 84×30 622×30
ERD 557mm 594mm

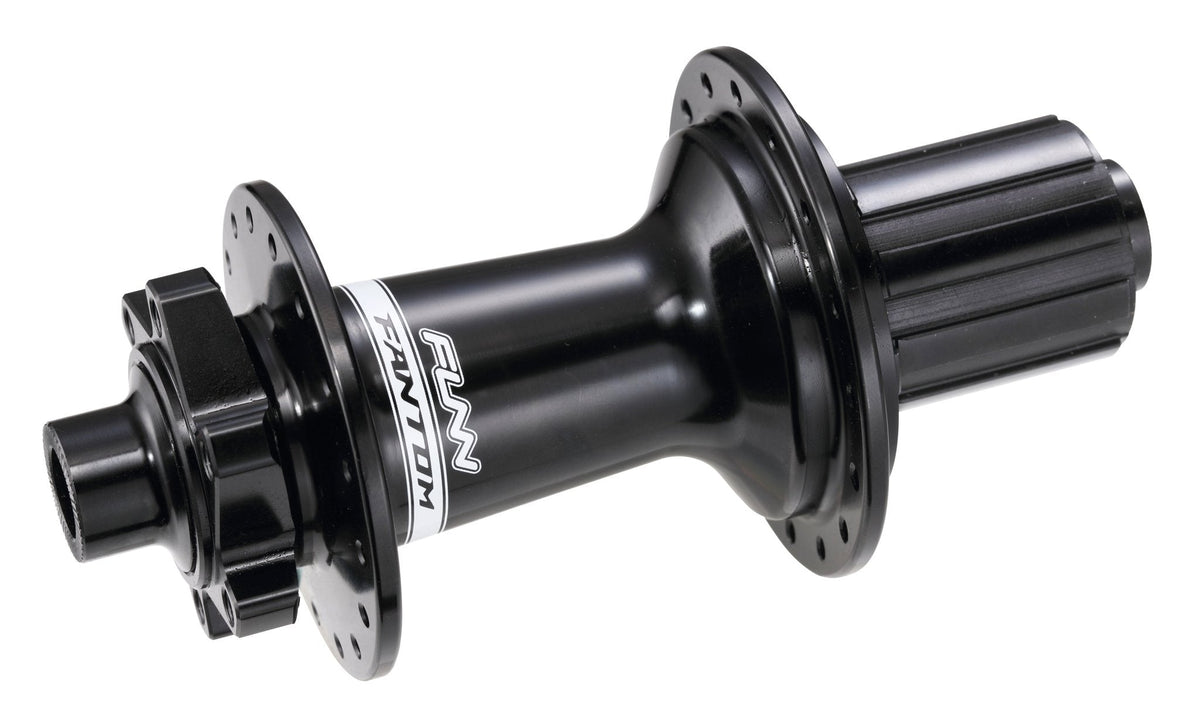

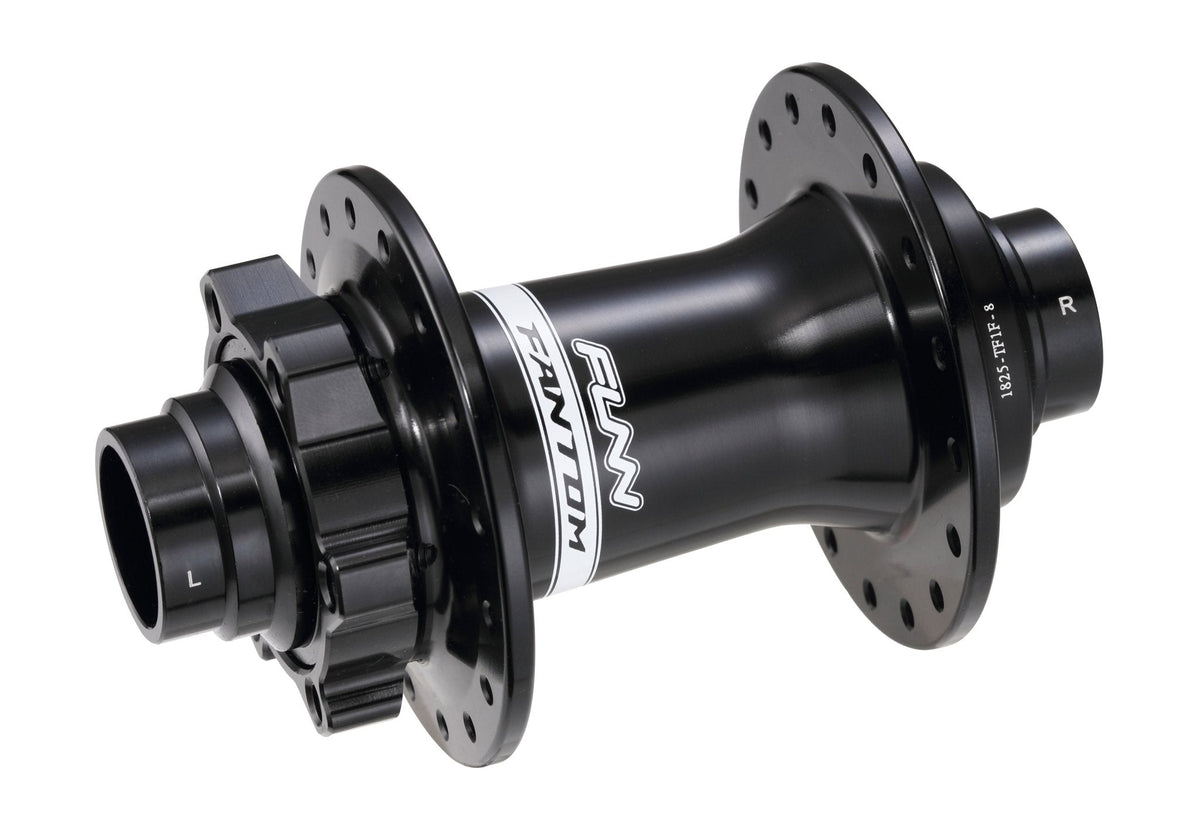

Funn Fantom Hub

Engagement Fantom 102T quick engagement
Cassette body Shimano HG / SRAM XD / Shimano Micro Spline
Hub body 6061 Alloy
Compatibility 100mm front/142mm rear hubs can be converted to QR standard.
Cassette body is convertible between Shimano and SRAM standards.


Butting Double-butted
Spoke count 32h each wheel
Nipple Brass
“For the price, these wheels are a great purchase; they do everything you’d want from a set of wheels at a quality level including a rapid engaging hub, trail riding strength and properly tubeless ready. Get them on, get them tubeless and have some Funn (yeah, I went there).”
